SiC Plate

SiC Refractory Plate

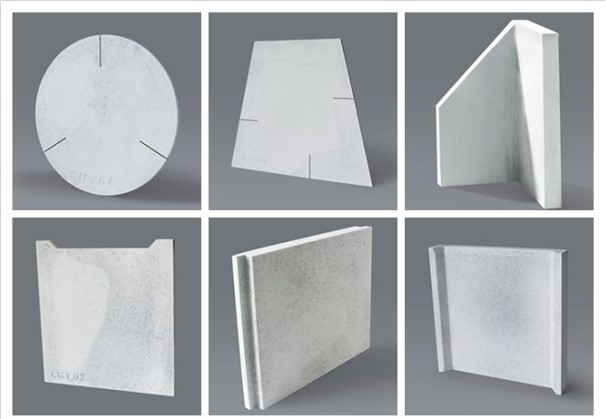

Kiln furnitures: silicon carbide plate/nitride bonded SiC slab/saggar etc. in material Si3N4-SiC ceramic/withstand temperature 1600℃
SiC Refractory Plate
SiC Refractory Plate
SiC Refractory Plate
SiC Refractory Plate
SiC Refractory Plate

Description

Reviews

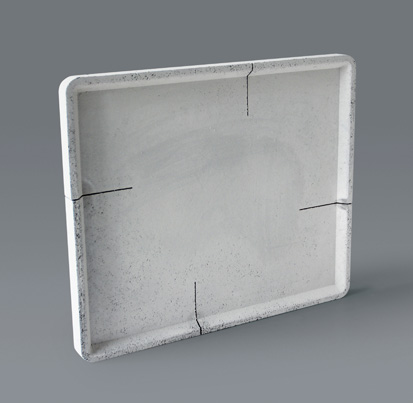

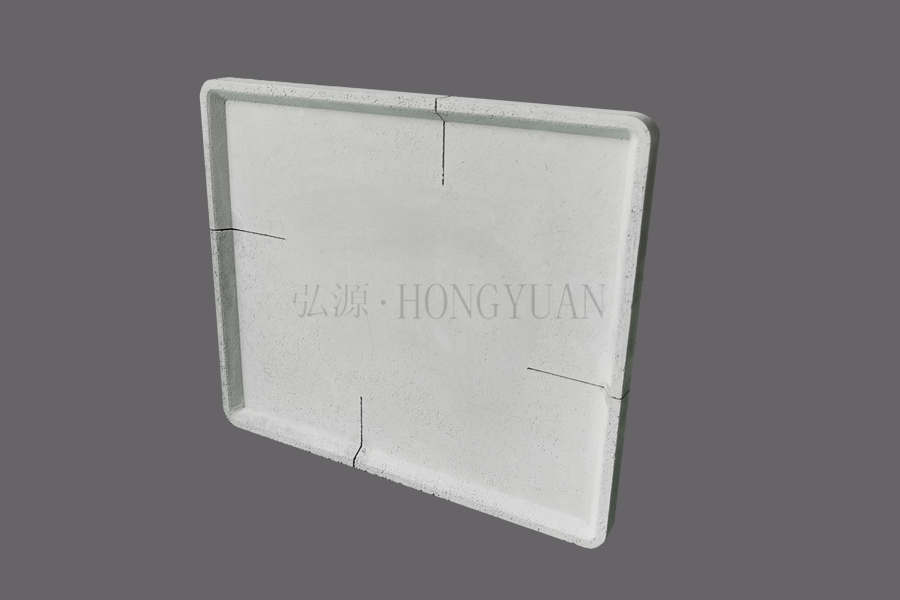

About SiC Refractory Plate/Slab

Hongyuan silicon nitride bonded silicon carbide bricks are made of its own silicon carbide raw materials, which are excellent in wear resistance, corrosion resistance, oxidation resistance, deformation resistance, thermal shock resistance and other properties;

They own the characteristics of high temperature strength, good thermal conductivity and long service life, which are widely used in electrolytic aluminum, steel works, smelting furnaces and other fields.

Application

Technical Data

Item Result Item Result
density(g/cm3) 2.65-2.8 SiC(%) 70-75
apparent porosity (%) 12-15 Si3N4(%) 18-24
rupture strength in normal temperature (MPa) 40-55 Si+SiO2(%) ≤4
rupture strength in high temperature (MPa) 50-65 Fe2O3(%) ≤1
heat conductivity (w/m.k) (1100℃) 16-18  the highest working temperature (℃) 1600
heat expansion (×10-6) 4.2

High Quality of Raw Material

Hongyuan company uses pure petroleum coke for smelting and produces its own silicon carbide raw material. Our company is one of the few domestic manufacturers with a complete silicon carbide product chain:

SiC crystal smelting- SiC grains- SiC ceramic products.

Advanced Equipments for Firing

The automatic nitriding furnace in large volume, controlled by microcomputer, was honored the First Prize of China Machinery Industry Science and Technology Award for the residual-heat utilization system, meanwhile our nitriding furnace gaining state's utility patent.

Contact Us

Hanjiang Hongyuan Xiangyang Silicon Carbide Special Ceramics Co.,Ltd.
Middle of Zhonghang Road, Aerospace Industrial Park, Xiangyang City, Hubei, China
Tel:+86-710-3155070
Mobile:+86-15072239775
Email: sales@hysic.com
